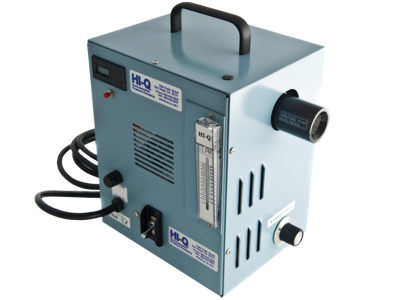

CF-1000 BRL Series - Brushless motor, portable high volume air sampler series

This portable, maintenance-free, variable speed, high volume air sampling system is ideal for continuous or intermittent sampling.

The CF-1000 BRL air sampler series have three flow ranges from which to choose. The standard CF-1001 BRL unit includes a 1½” female straight-pipe fitting, which accepts all CF Series holders (excluding the CFPH-810), and is calibrated with a flow range of 2 to 8 CFM.

The standard CF-1002 and 1003 BRL models come with a 4” diameter paper holder which can be adapted either up or down to accept any combination or paper-only CF series filter holder, including the 8” x 10”.

The 1002 and 1003 units come calibrated with a flow range of 8 to 28 and 15 to 50 CFM respectively. Upon ordering, please specify intended flow range if different from those listed, volumetric units (CFM or LPM) and intended filter collection media.

Customized flow ranges are available upon request.

Features

  • Portable.
  • Weighs less than 5 kg.
  • Maintenance free brushless motor.
  • Adjustable flow rate.
  • Digital display of flow rate, total volume, and min / max flow.
  • Elapsed, resettable electronic.

CF-1000 BRL Series High Volume Air Samplers Models

CF-1001 BRL or  CF-1001 BRL-DIGITAL

Flow Range: 2-8 CFM (60-230 LPM, special request) HI-VOL Air Sampler, 115VAC. Includes 1½” Female Straight Pipe Thread Inlet for “CF” series holders.

CF-1002 BRL or CF-1002 BRL-DIGITAL

Flow Range: 8- 28 CFM (250-800 LPM, special request) HI-VOL Air Sampler, 115VAC. Includes 4” Dia. filter paper only holder.

CF-1003 BRL or CF-1003 BRL-DIGITAL

Flow Range:15-50 CFM (400-1400 LPM, special request ) HI-VOL Air Sampler, 115VAC. Includes 4” Dia. filter paper only holder which accepts the “CF” series 8” x 10” holder.

230 Volt version of units described above:

  • CF-1001 BRL/230
  • CF-1002 BRL/230
  • CF-1003 BRL/230
Item  Information
Motor/Pump Brushless 2 stage centrifugal blower
Housing 9” x 10” x 11½”, aluminum cabinet, primed and painted with two component polyurethane paint.
Max Flow Rate (CF-1001BRL): 8 CFM (w/ FP2063-20)  &  4.5 CFM (w/ FP5211-20)
Max Flow Rate (CF-1002BRL): 28 CFM (w/ FP2063-102) & 17 CFM (w/ FP5211-102)
Max Flow Rate (CF-1003BRL): 50 CFM (w/ FP2063-810, 8” x 10”) &  45 CFM (w/ FP5211-810, 8” x1 0”)
Elapsed Timer:  Electronic, Resettable Hours & Tenths of Hours, LCD read out, 5 year internal battery. Minute timer may be substituted.
Unit Net Weight:  9.5 lbs.
Shipping Weight  & Dimensions:  12 lbs., one box. 11¼” x 10” x 13¼”
CF-1000BRL-Series Power Specifications:  115 VAC, 50/60Hz, 7.0 Amp. 230 VAC, 50/60Hz., 5.0 Amp
Filter Holders & Adapters:  See Filter Holders product.
Flow Calibrator:  See Air Flow Calibrators product.
Filter Paper:  See Filter Paper For Air Sampling product.
Filter Cartridges:  See Analytical Cartridges product.
Annular Kinetic Impactors: See Size Selective Inlets.

Electronic elapsed timer with resettable hours an tenths of hours, LCD readout, 5 year internal battery.

Minute timer is also available.
