An advanced hand held digital radiation monitor for all your radiation protection requirements

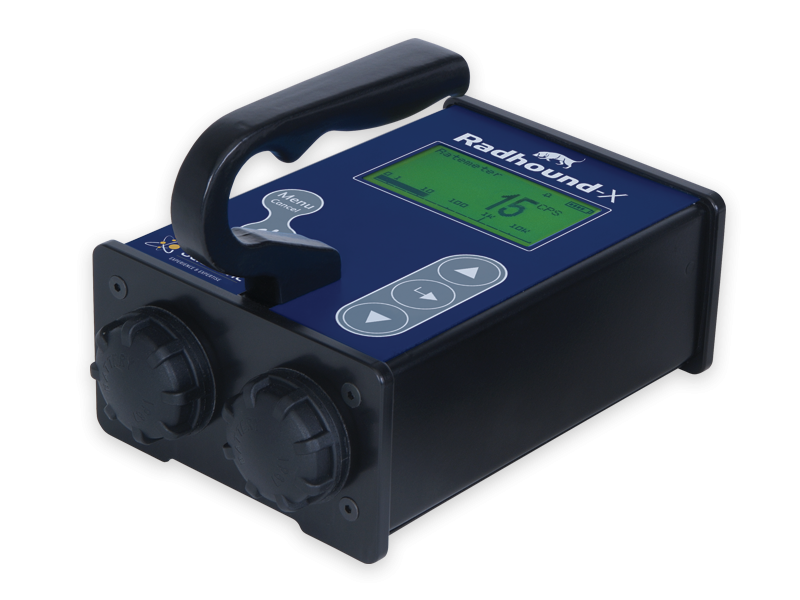

Radhound X/I is an advanced digital hand held general purpose radiation monitor with an internal dose rate detector.
This feature packed instrument boasts unique features.
Simple and easy to use
We take great care to ensure our instruments are very easy to operate. The menu on the Radhound X/I can easily be locked by the user to ensure only basic options are available, giving greater security and protection against accidental setting changes.
Radhound X/I has an adjustable alarm threshold. Additionally separate alpha and beta alarms can be set. The sounder is loud and clear, and is suitable for use in many different environments. A symbol flashes on the display when in alarm.
Radhound X/I has a scaler time mode, allowing the integration of dose rate. Additionally time to dose can be indicated.
Radhound X/I automatically checks its health on turn on. It checks the high voltage, battery level, keyboard and sounder.
Records the maximum value seen since the last reset.
|Main modes of operation||Dose rate, integrate/scaler timer, histogram, Peak value
Menu gives control of system parameters.
|Display||Large backlit LCD, 70 x 40 mm
Automatic backlight movement sensor - when instrument is picked up, the backlight comes on
|Displayed units||µSv/hr, mSv/hr, Sv/hr, (R/hr, mR/hr µR/hr)|
|Response time||0.5 second response
Adjustable averaging time 5, 10, 15 seconds
Integration time adjustable up to 24 hours
|Operational parameters||Adjustable alarm levels|
|Mechanical||Size: 165 x 115 x 59 mm excluding handle. Impact resistant, waterproof for IP65
Weight typically <1.3 kg
|Environmental||Operating temperature -10°C to +50°CStorage temperature -25°C to +60°C|
|Power||On screen battery status indication
2 x 1.5V C-cell or optional lithium ion rechargeable
Battery life typically >40 hrs continuous use
Radhound-XI-Datasheet-EU-Version-1.2Download (225.1 kB)
Monitoring-and-Analytical-Equipment-EU-Version-1.3Download (28.21 MB)
