Digital X-Ray ruler

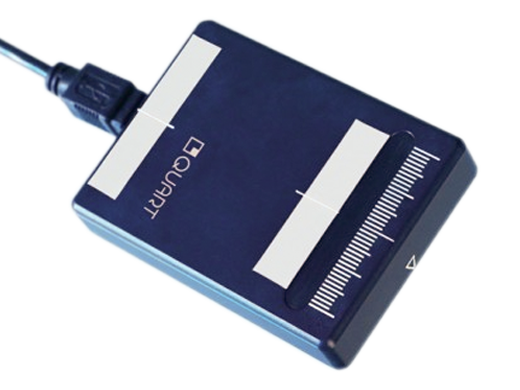

The QUART nonius is an easy-to-use, sophisticated measuring instrument used to verify size and geometrical properties of x-ray fields. It can also be used to analyze characteristics of fanned x-ray beams as used in CT or dental panoramic x-ray (OPG).
The QUART nonius is incredibly flexible: it it suitable for digital as well as conventional x-ray modalities such as Mammography, Dental, Fluoroscopy, Radiological and CT. In any case, its precision is an absolute strong point – as it achieves a resolution in the so-called nonius range of 0.1 mm.
The nonius software to operate the device is available as single or multi-user on-premise installation.
Measurement Features
- Alignment of light field and radiation field.
- Alignment of radiation field and detector.
- X-Ray field geometry and alignment.
- Fan-Beam geometry and alignment.
Specifications
- Accuracy / Resolution: +/- 0.1 mm
- Exposure Threshold: Dose = 100 µGy / Dose Rate = 20 µGy/s
- Minimum Exposure: Variable; depends on application and tube filtration.
- Measurement Method: Open measurement – no added filtration.
- Connectivity: Standard USB (2.0).
- Plug and Play Component.
- System Requirements: 1 available USB port.
- Operating System: Windows 8 / 8.1 / 10 and compatible.
- Sensor Area: 40 mm Length.
- Radiopaque center marker (Visible in test exposure).
- Weight: 190 g (without USB Cable).
- Size of Head Unit: 55 x 75 x 15 mm (W x L x H).
