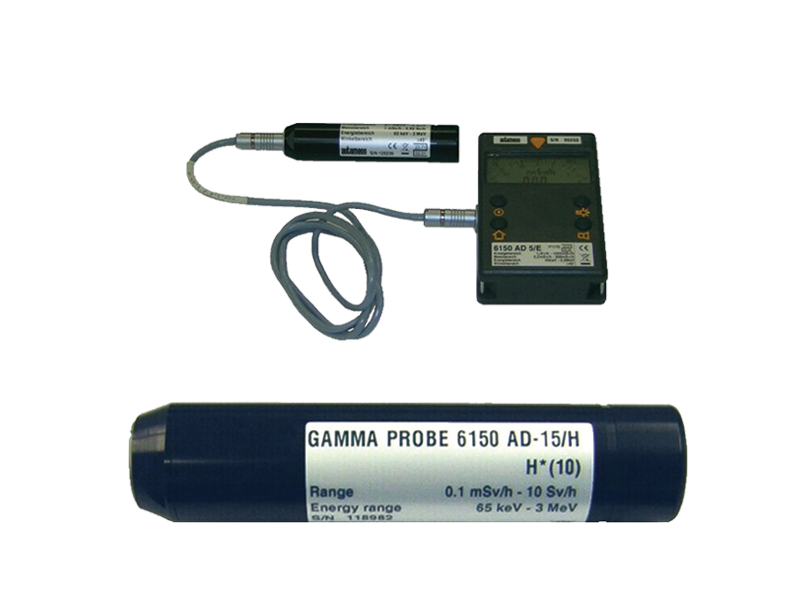

High range dose rate probe for photon radiation (gamma  and X-radiation), powered by the 6150AD5/6

Analog range : 0.1 mSv/h - 10 Sv/h

Digital range : 0.01mSv/h - 9.99 Sv/h

Energy range : 65 keV - 3 MeVHigh dose rate probe for photon radiation (gammaand X-radiation), powered by the 6150AD5/6

  • Automatic recognition of probe by 6150AD 5/6 rate meter
  • Robust waterproof aluminium housing
  • Up to 100m connection cable
  • Measures dose rates up to 10 Sv/h
  • H*10 ambient dose equivalent

Southern Scientific also supply a Low Dose Rate Probefor use with the 6150AD 5/6

Detector GM tube ZP1300 effective length 8mm, sensitivity approx. 100 pulses per µSv
User programmablealarms thresholds One freely programmable threshold for each dose and dose rate (with smart models 6150AD5/6 only)
Temperature range -30°C to +50°C, deciation max. ±10% referred to indication at +20°C
Humidity Nominal range 60 to 130 kPa (600 to 1300 mbar)
Power Supply 4.75 V out of 6150ADBattery life approx. 1500 hours at low dose rates with the 6150AD's illumination off
Housing Black anodised aluminium, waterproofProtection class IP67 according to DIN 40050
Dimensions 26 (diameter) x 118 (length) mm
Weight Approx. 75 g
