Universal radiation protection measuring instrument for X-rays, Gamma, Alpha and Beta radiation

  • Built in GM detector.
  • Displays dose & dose rate.
  • Programmable dose & dose rate alarm.
  • Connects to PC.
  • Non-volatile dose memory (data is not lost if switched off).
  • Automatically recognises attached probe for plug and play performance.
  • Display range and units adjusted automatically.
  • Battery life: Approx 1000 service hours.
  • PTB & GSF approved (recognised by HPA).
  • Sturdy, waterproof aluminium die cast housing.
  • Intrinsically safe version (see industrial applications).

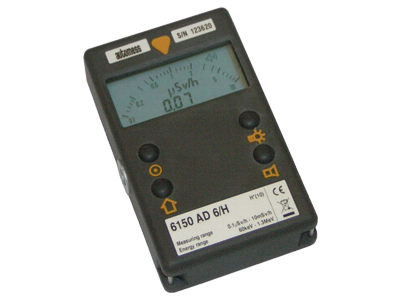

The 6150 AD 5 or 6 dose rate meter has a combination analog digital display, for at glance indication of dose or count rate and an easy to read numeric indication.

AUTOMESS 6150AD SMART PROBES : THE INTERNAL GM TUBE OF THE 6150AD 5 OR 6 DISCONNECTS AUTOMATICALLY WHEN A PROBE IS CONNECTED AND THE NUMBER OF THE PROBE APPEARS ON THE SCREEN.
Detector (energy compensated) AD5: GM tube ZP1310 effective length 16mm, sensitivity approx. 500 pulses per µSvAD6: GM tube ZP1200 effective length 40mm, sensitivity approx. 5800 pulses per µSv
Energy Range AD5: 45 keV - 2.6 MeVAD6: 60 keV - 1.3 MeV
Temperature Range -30°C to +50°C deviation max. ±10% referred to indication at +20°C
Humidity Nominal range 60 to 130 kPa (600 to 1300 mbar)
Power Supply 9V battery (alkaline according to IEC 6LR61 recommended) or 9V accumulator (rechargeable battery)
Housing Aluminium die-cast, waterproof, protection class IP 67 according to DIN 40050
Buzzer Piezo budder inside the housing
Dimensions 130 x 80 x 29 mm3
Weight Approx. 400 g
Carrying Strap Plastic, easy to decontaminate, length 1m
