The Pro-Dent set is a universal set of phantoms for carrying out constancy and acceptance tests of conventional and digital dental X-ray units (intra-oral, panoramic and cephalometric).

This is not an all-in-one device where results of tests blur each other out. This is the only solution on the marketthat makes it possible to measure the X-ray beam collimation with a dental film or a digital detector.

With the Pro-Dent set you can do the following tests:

  • dose reproducibility
  • development process stability
  • perpendicular X-ray beam (range 0° ÷ 1.5°)
  • limitation and alignment of the X-Ray beam (including beam radius measurement)
  • spatial / line pair resolution (perpendicular, parallel and rotated 45° to anode-cathode line)
  • low contrast resolution

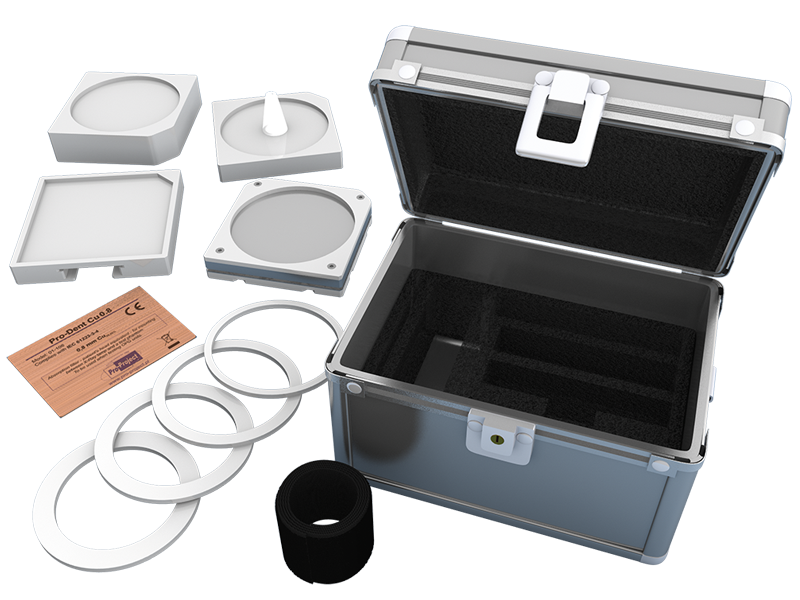

The Pro-Dent set consists of:

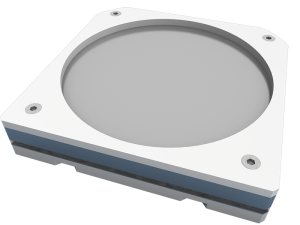

Pro-Dent α Phantom

Technical data (can be modified to customer specifications):

  • 3 step wedge (first step made of copper foil 0.3 mm thick, the next ones are made of polytetrafluoroethylene 8 and 16 mm thick)
  • cover made of PMMA

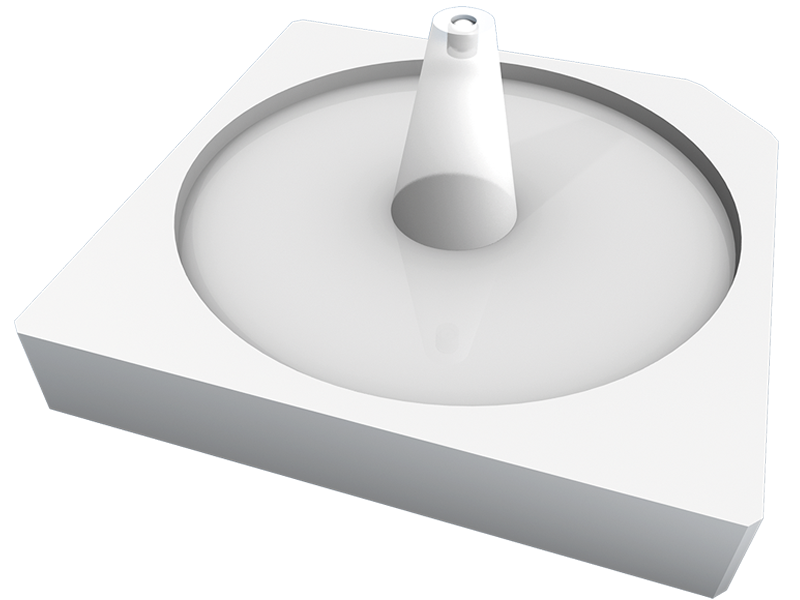

Pro-Dent β Phantom

Technical data (can be modified to customer specifications):

  • Cone for perpendicular X-Ray beam control in the range of 0° ÷ 1.5°
  • Pattern for beam radius estimation
  • Cover made of PMMA

Pro-Dent γ Phantom

Technical data (can be modified to customer specifications):

  • Pattern for line pair resolution evaluation (from 4 to 8 LP/mm)
  • Optional second pattern for line pair resolution evaluation (from 1.6 to 3 LP/mm) – OPG units
  • Four holes in 0.5mm Al foil for low contrast resolution tests
  • Additional 6mm aluminium filter
  • Cover made of PMMA
  • 0.8mm copper filter – patient’s head equivalent
  • Positioning stand with place for an analog film or a digital detector
  • Band for firm, perpendicular attachment of the phantom to the X-Ray unit’s beam applicator
  • rings for centering phantoms on the X-Ray unit’s beam applicator
  • CD with documentation
  • elegant and convenient aluminium box for storing phantoms
