PET Shipping System (Unit Dose Pig) For Shipping Syringes

PET Shipping System (Unit Dose Pig) For Shipping Syringes for shipping syringes with or without needles attached.

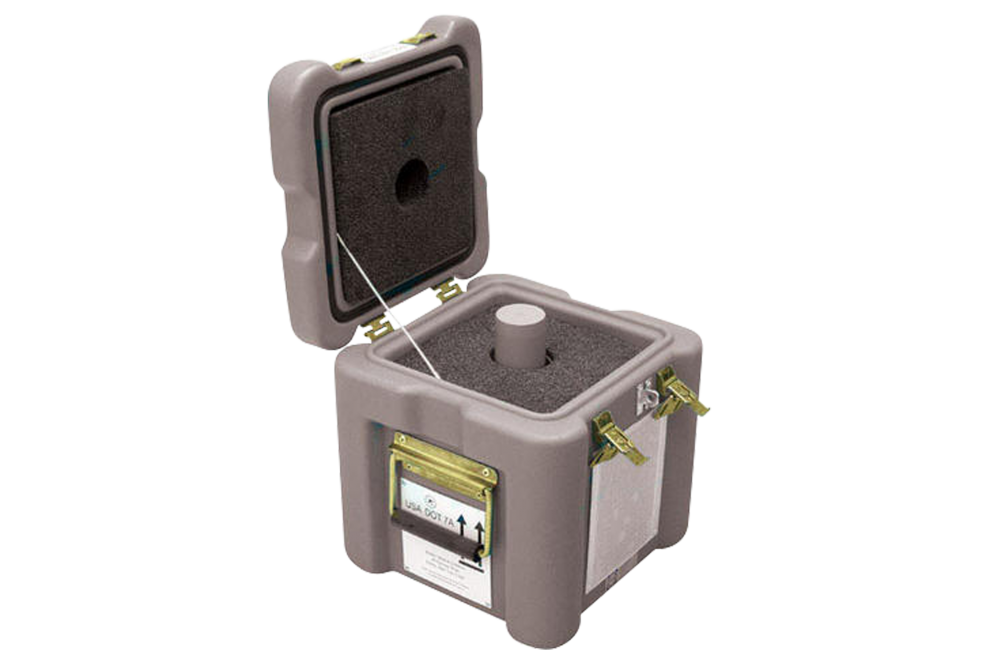

This Compact PET Shipping System transports one 3ml or 5ml dose containing high-energy radionuclides such as FDG F-18. Dose syringes fit into the pig with or without an attached needle. Designed to conserve space and minimize weight, the shipping container weighs less than 40lb. An important feature is that the shipping container can be left at a convenient height while the pig (9lb) can be easily removed from the container. The pig is then placed behind an L-Block Shield for dose loading and unloading. All Biodex PET L-Block Shields incorporate a hex-shaped plate that corresponds with the hex shape at the base of the pig. This design element allows one-handed loading and unloading of syringes.

The 001-785 Unit Dose Pig is encapsulated in durable, high-impact Lexan and polypropylene, making the pig durable, easy to clean and compatible with automatic washing systems. A single twist opens or closes the pig, reducing handling time.

The system meets DOT Yellow II Type A packaging requirements when shipping up to 500mCi (18.5GBq) of FDG F-18.

001-785 Unit Dose Pig

Dimensions

  H 10.2" x D 2.4" (26 x 6cm)

Lead Shielding

  Body  .5" thick (1.3cm)
 Top  1.44" thick (3.6cm)
 Bottom  1.2" thick (3cm)

Weight

  8.7lb (4kg)

001-786 PET Shipping System, Single

Container Dimensions

  L 11.75" x W 11.75" x H 12.5" (29.8 x 29.8 x 31.8cm)

Cubic Feet

  ~1cu ft (.03cu meters)

Weight (Combined)

  38.3lb (17.5kg)
