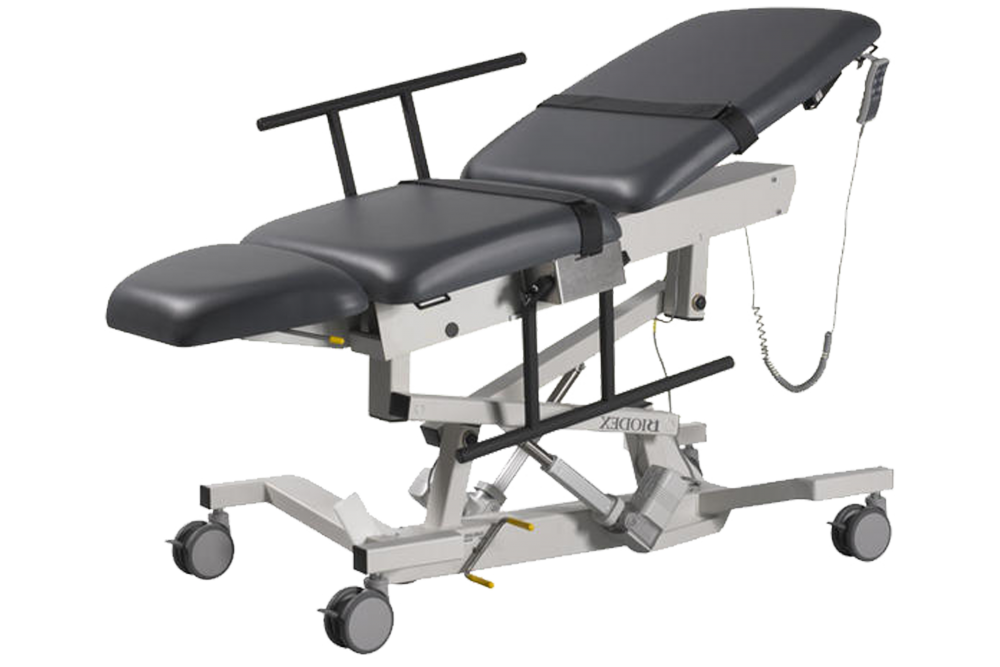

Ultra Pro™ Ultrasound Table

The Ultra Pro™ Ultrasound Table is the professional’s choice when performing general ultrasound procedures, including OB/GYN.

 The table's ergonomics are designed to reduce sonographer fatigue and require less patient repositioning, making it easy to achieve quality images in less time. Fowler positioning which provides the utmost patient comfort, an enhanced central floor-locking system offering easier access from around the table and an antimicrobial vinyl mattress ensuring safety against infection are all standard on the Ultra Pro.

Customization

Customization is made possible with optional items including flush mounted side rails allowing complete patient access and safety; retractable stirrups with contoured heel cups and an extra-long extension for taller patients; an articulating scanning arm board, and a headrest that drops down 15 degrees to allow for carotid studies.

Dimensions

 Overall L 70" x W 30" (177.8 x 76.2 cm); W 35" (88.9 cm) with optional side rails
Drop-Down Leg Section L 12.6" (32 cm)

Motions

 Height Adjustable 23" to 39" (58.4 to 99 cm)
Trendelenburg 0° to ±15°
Fowler Positioning 0° to 80° infinitely adjustable

Controls

 Hand Control Activates height, Trendelenburg motions, Fowler positioning and auto level motions
Foot Control Activates height, Trendelenburg motions, and Fowler positioning

Wheels

 5" (12.7 cm) Individual locking swivel casters; central floor-locking system

Tabletop

 Three primary sections: torso section with Fowler positioning, center section remains fixed and leg section drops down to 40° and 80° for stirrup access

Mattress

 Torso section 2" (5 cm) thick, center and leg sections 3" (8 cm) thick; Naugahyde®, antimicrobial mattress cover with Advanced BeautyGard® provides protection against bacteria

Upholstery Color

 Graphite

Patient Restraints

 Two body straps

Finish

 Powder coat

Patient Capacity

 500 lb (227 kg); weight tested to four times the patient load rating.

Weight

 335 lb (152 kg)

Power

 115 VAC (058-720) or 230 VAC (058-725)

Suitable Procedures

  • Abdomen

  • Renal

  • Aorta

  • Pelvis

  • Endovaginal**

  • OB

  • Hysterosonography

  • Thyroid

  • Testicular

  • Breast

  • Musculoskeletal

  • Carotid

  • DVT/Lower Extremity Venous*

  • Lower Extremity Arterial

  • Venous Reflux*

  • Upper Extremity Arterial**

  • Upper Extremity Venous

  • Renal Artery

  • Renal Transplant

  • Abdominal Doppler

  • SMA

  • Transesophogeal Echo (TEE)

*Requires optional vascular arm board.
**Requires optional stirrups.
