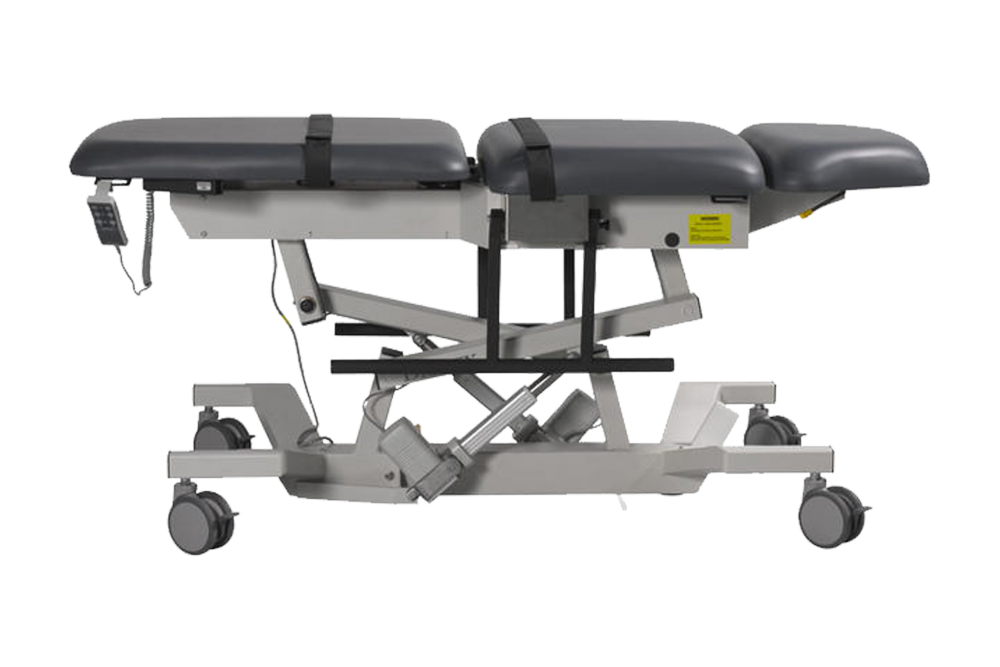

Econo Ultrasound Table

The Econo Ultrasound Table is designed on the same platform as the Ultra Pro with similar features and functions.

To make it a more cost-effective alternative it is offered without Trendelenburg positioning or central floor-locking system. The same ergonomics have been incorporated into the design of the Econo Ultrasound Table, making it easy for a sonographer to achieve quality images without discomfort to the patient or sonographer. Motorized height and Fowler positioning which accommodates natural body extension and sitting position, a height range as low as 23" to allow wheelchair transfers and a hand controller are just some of the features that make the imaging experience easy with the Econo Ultrasound Table.

The Econo Table can be customized to suit your department needs with an assortment of table options. Flush-mounted side rails enable closer patient access without sonographer contortion.  An articulating scanning arm board, adjustable from 0-130 degrees and a headrest that drops down 15 degrees to allow for carotid studies are just some of the items which can be added to the table.



Dimensions

 Overall L 70" x W 30" (185.4 x 76.2cm); W 35" (88.9cm) with optional side rails
Drop-Down Leg Section L 12.6" (32cm)

Motions

 Height Adjustable 23" to 39" (58.4 to 99cm)
Fowler Positioning 0° to 80° infinitely adjustable

Controls

 Hand Control Activates height and Fowler positioning

Wheels

 5" (12.7cm) Individual locking swivel casters

Tabletop

 Three primary sections: torso section with Fowler positioning, center section remains  fixed and leg section drops down to 40° and 80° for stirrup access

Mattress

 Torso section 2" (5cm) thick, center and leg sections 3" (8cm) thick; Naugahyde®, antimicrobial mattress cover with Advanced BeautyGard® provides protection against bacteria

Upholstery Color

 Graphite

Patient Restraints

 Two body straps

Finish

 Powder coat

Patient Capacity

 500lb (227kg); weight tested to four times the patient load rating.

Weight

 335lb (152kg)

Power

 115 VAC (058-726) or 230 VAC (058-726)

Suitable Procedures

  • Abdomen

  • Renal

  • Aorta

  • Pelvis

  • Endovaginal**

  • OB

  • Hysterosonography

  • Thyroid

  • Testicular

  • Breast

  • Musculoskeletal

  • Carotid

  • DVT/Lower Extremity Venous*

  • Lower Extremity Arterial

  • Venous Reflux*

  • Upper Extremity Arterial**

  • Upper Extremity Venous

  • Renal Artery

  • Renal Transplant

  • Abdominal Doppler

  • SMA

  • Transesophogeal Echo (TEE)

*Requires optional vascular arm board.
**Requires optional stirrups.
