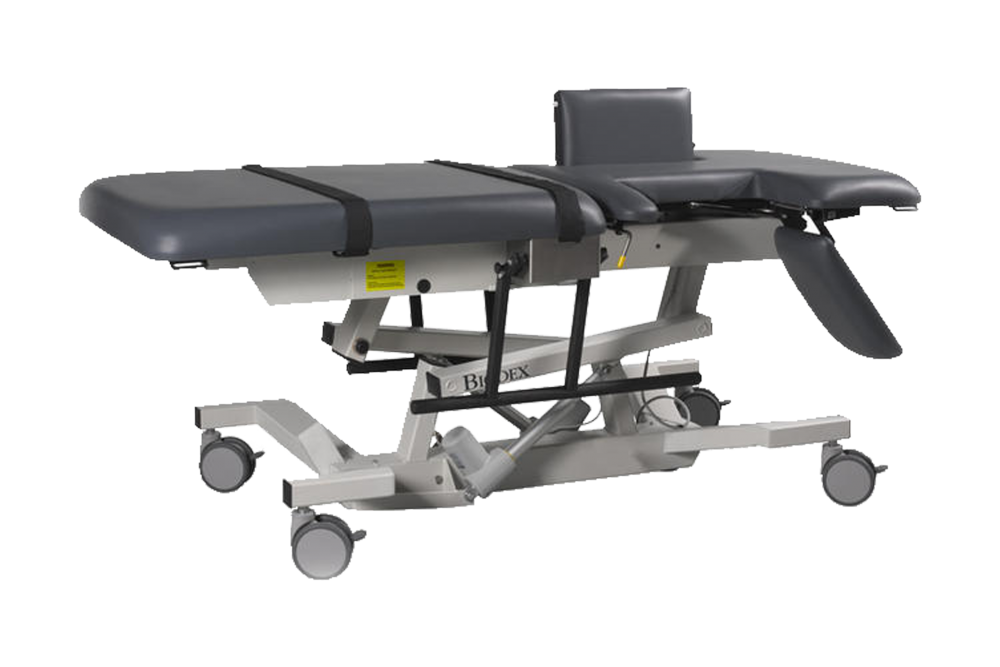

Econo Echocardiography

The Econo Echocardiography table is based on the same platform as the Echo Pro.

It has the same ergonomic features, keeping the safety of the sonographer in mind. To make it a more cost-effective alternative, it is offered without Trendelenburg positioning or the central floor-locking system. The barrier between sonographer and patient is eliminated with the Econo Echocardiography Table, featuring an ergonomic design, which helps prevent musculoskeletal injury.

With the capability to release and return from either side of the table, the cardiac cushion drops down to reveal the industry’s largest scanning cutout providing open access to the patient’s left thorax area for an unobstructed, apical approach. The Econo Echocardiography Table has many optional items to further improve sonographer comfort and safety. Choose what best suit your department’s specific needs. Side rails for closer patient access, an articulating scanning arm board, adjustable from 0 to 130-degrees and a headrest for easier thyroid and carotid access are all available.

Dimensions

 Overall L 73" x W 30" (185.4 x 76.2cm); W 35" (88.9cm) with optional side rails
Cardiac Scanning Cutout L 15.75" x W 9.5" (40 x 24.1cm)
Sonographer Cutout L 14.75" x W 8" (37.4 x 20.3cm)

Motions

 Height Adjustable 23" to 39" (58.4 to 99cm)
Fowler Positioning 0° to 80° infinitely adjustable

Controls

 Hand Control Activates height and Fowler positioning

Wheels

 5" (12.7cm) Individual locking swivel casters

Tabletop

 Two primary sections Torso section: features sonographer and patient cutouts with Fowler positioning, and lower body section remains fixed
Drop-down cushion Releases from either side of the table
Adjustable sonographer cushion Drops down or folds up for maximum access to the patient

Mattress

 Torso section 2" (5cm) thick, lower body section 3" (8cm) thick; Naugahyde®, antimicrobial mattress cover with Advanced BeautyGard® provides protection against bacteria

Upholstery Color

 Graphite

Patient Restraints

 Two body straps

Finish

 Powder coat

Patient Capacity

 500lb (227kg); weight tested to four times the patient load rating.

Weight

 335lb (152kg)

Power

 115 VAC (058-701) or 230 VAC (058-706)

Suitable Procedures

  • Abdomen

  • Renal

  • Aorta

  • Pelvis

  • Thyroid

  • Testical

  • Breast

  • Musculoskeletal

  • Carotid

  • Upper Extremity Venous*

  • Upper Extremity Arterial*

  • Renal Artery

  • Renal Transplant

  • Abdominal Doppler

  • SMA

  • Echocardiography

  • Stress Echo

  • Transesophogeal Echo

*Requires optional vascular arm board.
