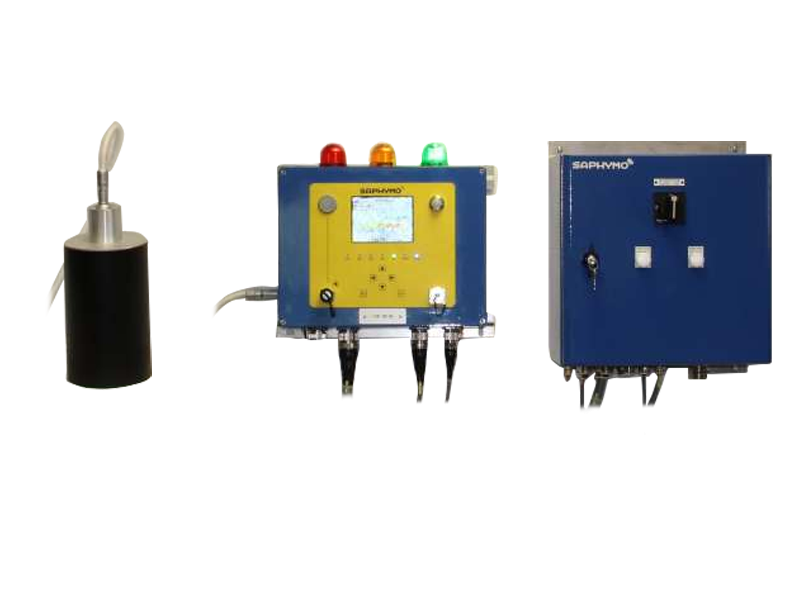

The GAM200 Gamma Monitor is used for continuousmeasurement of gamma dose rate in any indoor facility.
The monitor displays the dose rate and triggers alarmswhenever preset threshold levels are exceeded.
It consists in an IC400 ion chamber combined to a MDU/IC processing unit.
The GAM200 is part of the SYSRAY RMS system.
This monitor also exists in a 1E classified version.
| Monitored Radiation | γ |
| Detector Type | 4 litres ionisation chamber |
| Measurement Range | 10-7 at 1 Sv/h |
| Energy Range | 60 KeV at 3 MeV |
| TID | 100 Gy |
| Temperature | Long term: +10 at +45°COccasional: 0 at +55°C |
| IC400 ChamberDimensions | Ø: 180 mm, W: 250 mm, Mass: 500 g |
| MDU/IC ProcessingUnit Dimensions | H: 450 mm, W: 350 mm, D: 150 mm |
| Weight | 12 kg |
| Power Supply | 12 V= ; 24 V= ; 120 V~ or 230 V~ / 50 Hz or 60 Hz |
| Consumption | 30 VA |
