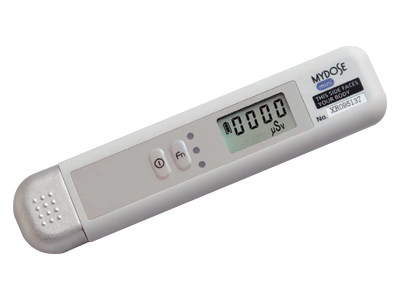

A highly sensitive, compact dosemeter to measure gamma and X-rays

This direct-reading dosimeter displays an accumulated dose as well as dose rate, and is suitable for measuring above 100 kVp of X-ray tube voltage.

Features

  • Light and compact to fit in a pocket
  • Alarm function equipped
  • Wide measurement range from 1µSv to 10 Sv
  • Accumulated dose and dose rate measuring
  • Data holding function
  • Easy to see display with backlight
Radiation detected Gamma and X-ray
Energy threshold 40 keV
Detector Silicon semiconductor
Measurement range        Dose: 1 µSv/ to 10 Sv (0.1 mrem to 1000 rem)Dose rate: 1 µSv/h to 15 Sv/h (0.1 mrem/h to 100 rem/h)
Accuracy Within ±10% from 10 µSv to 10 Sv (from 1 mrem/h to 100 rem/h)
Linearity Within ±20% from 10 µSv/h to 1 Sv/h (from 1 mrem/h to 100 rem/h)
Energy dependence Within ±30% from 50 keV to 1.5 MeV (Ref. 137Cs)
Alarm                                                       5 Alarms: Accumulated dose caution and alarm, elapsed time, dose rate caution and alarmApprox. 70 dBa at 30cm
Waterproof and dustproof IP54
Display 4-digit LCD with unit and battery indications, built-in backlight
Controls Power and function switches
Immunity 150 V/m: 0.15 MHz to 200 MHz100 V/m: 200 MHz to 1000 MHz (IEC61326-1:2006)
Power One lithium battery CR2450 (conforming to IEC 60086-2)
Battery life Approx. 700 hours of continuous use (at room temp. 20°C
Environment (operational) Temperature -10°C to +50°CRelative humidity up to 90% (non-condensing)
Dimensions Approx 31 x 13 x 140 mm (excl. the clip)
Weight Approx 55 g
