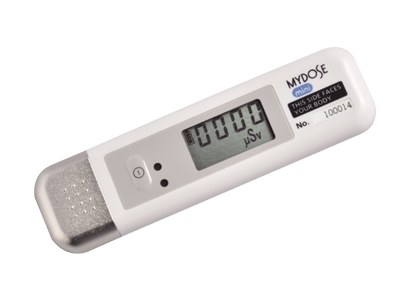

A highly sensitive, compact dosemeter to measure gamma and X-rays

This direct-reading dosimeter displays an accumulated dose as well as dose rate, and is suitable for measuring above 100 kVp of X-ray tube voltage.

Features

  • Light and compact to fit in a pocket
  • Wide measurement range from 1µSv to 10 Sv
  • Simple operation of only one button
  • Dose rate measuring
  • Data holding function
Radiation detected Gamma & X-ray
Energy threshold 40 keV
Detector Silicon semiconductor
Measurement range Dose:         1 µSv to 10 SvDose rate: 1 µSv to 15 Sv
Accuracy Within ±10% from 10 µSv/h to 10 Sv/hCalibrated by 137Cs using a slab phantom
Linearity Within ±20% from 10µSv/h to 1Sv/h
Energy dependence Within ±30% from 50 keV to 1.5 MeV
Display 4-dgit LCD with unit and battery indications
Switch Power on/off (including reset operation) and dose rate display
Immunity 150 V/m : 0.15 MHz to 200 MHz100 V/m : 200 MHz
Power One lithium battery CR2450 (conforming to IEC 60086-2)
Environment (operational) Temp -10°C  to +50°CRelative humidity up to 90% (non-condensing)
Dimensions Approx. 30 x 11 x 108mm (excluding the clip)
Weight Approx 40g
