A fully automated on-line radiation water monitor.
Wilma utilizes a novel approach to streamline the time consuming process of sample collection and preparation traditionally required for detecting radiation (specifically alpha and beta contamination) in water via liquid scintillation counting.
Wilma is ideal for simplifying a range of applications which require routine sampling, including:
- Ground water radiation contamination monitoring.
- Monitoring tritium levels in cooling water.
- Quasi real-time radiation monitoring of drinking water.
Fully integrated radiation water monitor

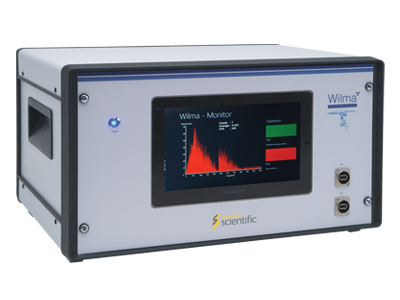

The simple, self-contained unit combines fluid handling systems for sample collection, preparation, and disposal, with radiation detection and analysis of contamination, all within a rugged and compact housing - measuring just 480 x 400 mm and designed to operate in demanding environments.
Totally autonomous radiation measurements
The self-contained water radiation monitor is able to operate independently, for as long as it has the necessary reagents. Wilma was designed to minimize waste production and reduce the consumables required. With a well-characterised response and stable background, this design allows a unit to continue running without supervision for in excess of 30 days.
Simple to use instrument

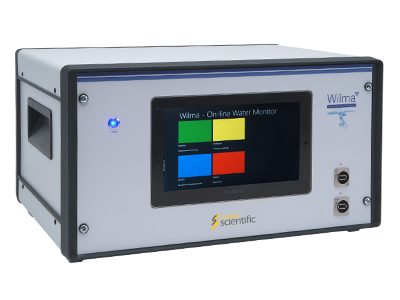

Wilma includes a touchscreen PC running user-friendly software, which allows easy configuration and monitoring of sampling and measurement cycles. Default measurement cycles can be provided to bring the instrument on-line soon after installation.
Completely customizable online monitor
Designed, developed and built by the LabLogic Group, Wilma can be fully customized to suit any application. The system can integrate additional sensors and measurement systems, handle complex sampling and preparation routines, and integrate with external monitoring and alarm networks. Two of the configurations currently available are:
1. Ground Water Radiation Monitor
The Wilma Ground Water Monitoring System combines the proven Wilma fluid handling and LSC modules with additional pumping and sensing capabilities to manage the extraction and characterisation of ground water samples at the source. The system can be configured for remote measurements and transmit data via a secure wireless network. Ideal for campaign-based measurements, the system is mounted inside a rugged IP65-rated enclosure for all-weather protection.
2. Tritium in Air Monitoring System
The Wilma Tritium in Air Monitoring System utilizes the configurable Wilma fluid handling and LSC detector to automate the operation of a tritium bubbler. The customized software includes cycles to sample water in the bottles, as well as emptying, washing and refilling them as part of the standard operating procedure. This application allows long-term, remote monitoring of tritium in air levels down to less than 10 Bq/m3, ideal for monitoring in isolated locations or areas where access is difficult.
Contact the Southern Scientific team for a quote, to find out more information about the Wilma water radiation monitor, or to request a free demo.
Wilma On-line Water Radiation Monitor Features
- Small sample volume (max. 5 ml) minimizes scintillation cocktail waste production.
- Established coincidence-based liquid scintillation counting techniques gives background rates <5 cpm.
- Counting windows can be set to permit maximum efficiency for radionuclides of interest.
- Low energy ß counting efficiency (3H) > 15% for a 2 ml sample (2.5 ml scintillation cocktail).
- Lower limit of detection for 3H is 2200 pCi/L (81.4 Bq/L) for a 60 min count time and 1500 pCi/L (55.5 Bq/L) for 120 min.
- Proven detection sensitivity down to 10 nCi/L (370 Bq/L) for key environmental radionuclides 3H, 90Sr,137Cs and 241Am and giving sample recoveries in excess of 40%.
- Compact MCA module (up to 8192 channels) provides an additional sample analysis metric to allow for rapid identification of contamination.
- Manifold-based fluid handling module reduces risk of leakage, provides control of sample mixing with the scintillation cocktail and allows for easy maintenance.
Wilma On-line Water Radiation Monitor Software
- Fully configurable measurement cycles gives user control over flow rates, analysis time, wash cycles and periodic calibration standard injection.

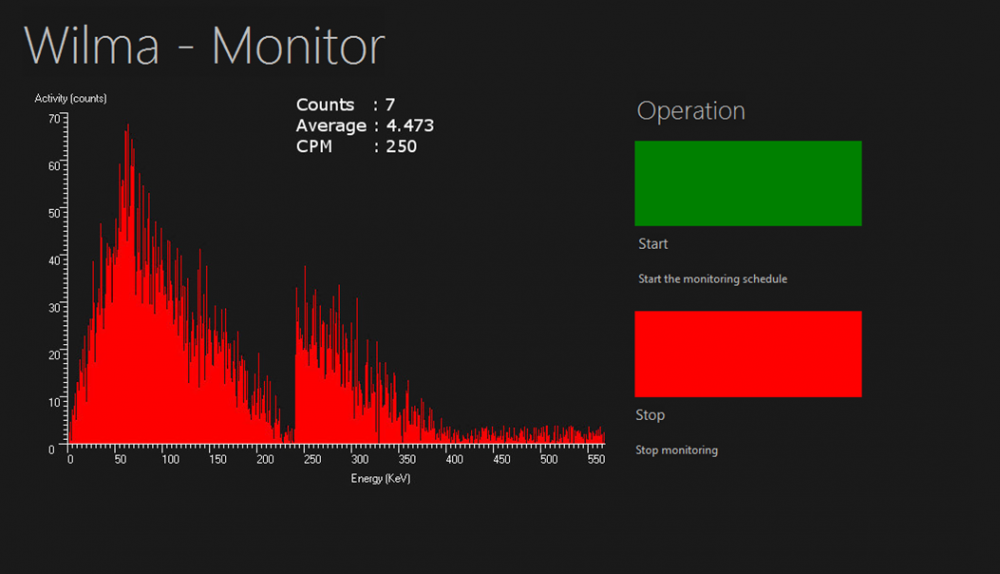

- Measurement display provides information on gross counts, average count rates and real-time sample spectrum acquisition.
- Animated flow path diagram permits easy observation of system status.
- Measurement queue function allows a series of cycles to be run over a defined time period of up to several weeks.
- Samples exceeding a pre-determined threshold trigger an automatic alarm which communicates the status and trigger conditions to system supervisors via e-mail.
- Data export function to allow for additional analysis.
Wilma Radiation Water Monitor existing customers
Click on the tabs below to find out more about our customers, and how they are using Wilma in their laboratories.
The United Kingdom’s Atomic Energy Authority has procured Southern Scientific’s Wilma monitoring system along with a Marc 7000 tritium bubbler for use in detritiation and tritium analysis experiments at the H-3 Advanced Technologies (H3AT) division. H3AT focuses on tritium processing, distribution, storage, recycling, and disposal, and is part of the Culham Center for Fusion Energy, the UK’s national laboratory for fusion research.
Mirjana Damjanovic is the UKAEA’s Waste Detritiation Lead Engineer who is leading the research into removing tritium from radioactive waste for the JET Decommissioning and Repurposing Programme. Explaining the decision to procure Wilma, Mirjana said, “We analyze tritium in water samples and did not have an existing system for continuously monitoring tritium in water, so Wilma was a new system introduced at H3AT.”
National Physical Laboratory, UK
The MetroDECOM II project addresses a significant challenge facing the EU’s nuclear industry: creating viable solutions for nuclear waste management from decommissioned sites. The cost of decommissioning and waste management in the EU is estimated to be over €150 billion.
Contributing to the project, Southern Scientific’s Wilma aims to provide a remote, automated air monitoring system to deploy to test sites, enabling the safe storage and disposal of nuclear waste.
Wilma’s existing functionality utilizes a novel approach to streamline the process of sample collection and preparation required for detecting and quantifying alpha and beta contamination in liquid samples via scintillation counting. Wilma includes touchscreen PC running user-friendly software, which allows easy configuration and monitoring of sampling and measurement cycles.
Massachusetts Institute of Technology, USA
Wilma is a fully automated online radioactivity monitoring system, designed to streamline the time-consuming process of collecting and preparing samples for detecting ionising radiation in water.
The Massachusetts Institute of Technology (MIT), a private research university in the United States, has installed Wilma recently to monitor tritium (3H) levels in cooling tower water at its Nuclear Reactor Laboratory facility.
