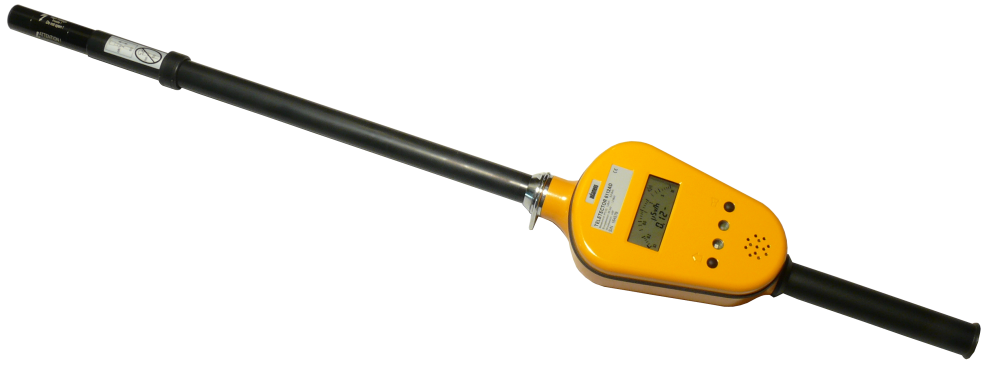

Teletector 6112AD microprocessor controlled dose rate meter with telescope for measuring photon radiation (gamma and X-radiation)
The Teletector 6112AD is a new development of the old Teletector versions, combining the best and most loved features with more reliable electronics.
- Safety by distance: Stainless steel telescope may be extended continuously up to a total length of approximately 4m.
- Wide dose rate range from 0.01 μSv/h to 10 Sv/h with automatic range selection and automatic switching between the two counting tubes.
- Simultaneously measures current, average, and maximum value of dose rate.
- One freely programmable alarm threshold for each dose and dose rate, programming mode to customize operation to individual requirements.
- Continuous monitoring of counting tubes and batteries.
- LCD with analog and digital indication and automatic backlight, speaker to guide the user and emit warning tones.
- Archive containing data of the last 496 Teletector uses.
Teletector 6112AD technical specifications
|Teletector 6112AD technical specifications|
|Low range detector||Gamma tube LND7121, energy compensated, effective length 40 mm, sensitivity at Cs-137 approx. 5800 pulses per μSv|
|High range detector||Gamma tube LND716, energy compensated, effective length 7 mm, sensitivity at Cs-137 approx. 100 pulses per μSv|
|Switching between detectors||Automatically with hysteresis:
> 10 mSv/h (1 R/h): up
< 3 mSv/h (0.3 R/h): down
Manual selection of either detector for radiological check
|Measuring quantities||Model 6112AD-Sv: H*(10) (unit Sv)
Model 6112AD-R: JS (unit R)
|Measuring range according to time constant||»slow«: from 1 µSv/h (100 µR/h)
»fast«: from 5 µSv/h (0.5 mR/h)
in each case up to 9.9 Sv/h (990 R/h)
|65 keV to 1.3 MeV
±45° around preferential direction 0°
+50%/–25% (permitted: +67%/–29%) referred to Cs-137 in 0° direction
|–20°C to +60°C
0 to 95% relative humidity,
+15% / –10% (permitted: +18% /
–13%) referred to +20°C and 65%
|Ambient pressure||60 to 130 kPa (600 to 1300 mbar)|
|Speaker||Pleasant melodies to guide the user and aggressive warning tone of ~2.1 kHz, > 85 dBA at a 30 cm distance|
|Power supply||4.0 to 7.0 V
Four C cells (LR14, AM2)
|Battery life with alkaline batteries||Sleep mode: > 15 years
Measuring mode: depending on conditions 500 to 20 000 hours
|Protection class||IP 67 according to DIN 40050
if telescope completely retracted and protective cap applied
|Dimensions||Length 970 mm / 4170 mm (telescope retracted / extended)
Height ~90 mm max
|Weight||2.7 (3.0) kg without (with) batteries|
Teletector 6112AD features
Two GM counting tubes serve as detectors allowing a very wide dose rate range up to 10 Sv/. The counting tube probe is mounted at the end of a stainless steel telescope which can be continuously extended up to approximately four meters. This allows measurements at large safety distances and at places difficult to reach. Automatic range selection and automatic counting tube selection is what you expect from a modern instrument. The Teletector’s design emphasizes high versatility without neglecting clearness and ease of operation.
The Teletector’s design also emphasises low energy consumption at still high comfort. A light sensor automatically controls the white LCD backlight according to ambient light conditions. This makes the display easy to read in complete darkness as well as in direct sunlight.
The connector at the side of the Teletector’s housing provides a 5 Volt supply output and a serial interface. External probes of the AmSeL or a PC can be connected to exchange data according to AmSeL rules.
