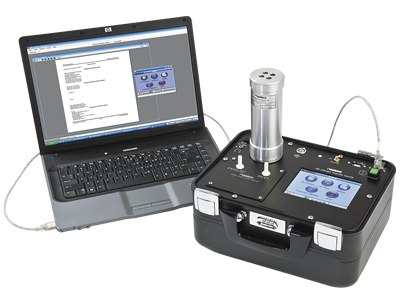

Portable Radon Monitor

The new Pylon AB7 portable radon monitor is a next generation laboratory-grade instrument for fast accurate measurement of radon levels.The unit incorporates advanced technology and user-friendly features for enhanced performance and versatility.

Applications

  • Continuous monitoring.
  • Grab sampling.
  • Environmental studies.
  • Area scanning.
  • Field surveys.
  • Uranium mining/production/exploration.
  • Oil and gas.
  • Governments.
  • Educational institutions.
  • Research facilities.

...and more

Mode of Operation Multiple
Sample and Count Periods User programmable
Maximum Counting Rate 10,000 cps
Electronic Background < 0.4 cpm
Detector Active and passive Lucas type scintillation cells (sold separately)
Power Supply 12 - 14.7 V DC 4 A - 110/220V AC adapter / charger included
Battery Integrated 12 V gel cell, Operating time: 22 hrs - backlight off, without pump, 5 hrs - backlight on, without pump, Charge time: 5 hrs
Display 14.5 cm (5.7") LCD color touchscreen
Memory 1) 1GB SD memory card 2) 2GB USB memory stick
Data Ports 1) USB host port 2) USB client port 3) 5V TTL pulse via SMA connector
Lid Removable
Pump Flow Rate 0 to 2 lpm - user adjustable
Temperature Range Operating: 0°C to +40°C / -32°F to +122°F, Storage: -20°C to +60°C / -4°F to +140°F
Relative Humidity Range 0 to 90% non-condensing
Dimensions 31 x 23 x 20 cm / 12" x 9" x 7.75"
Weight 6kg / 13lbs
